EVERTUNE® CHEVALET...

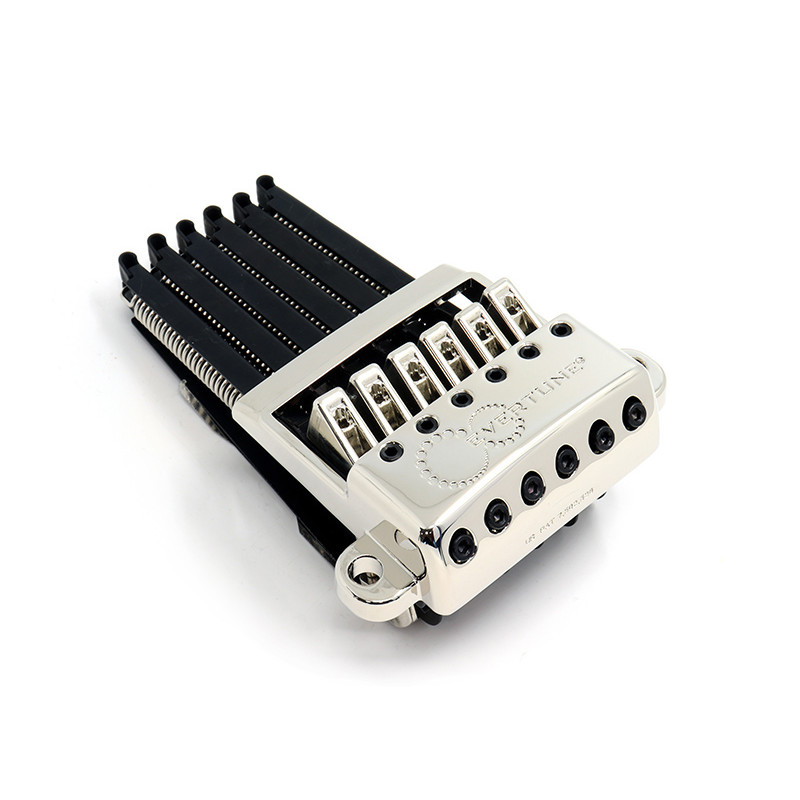

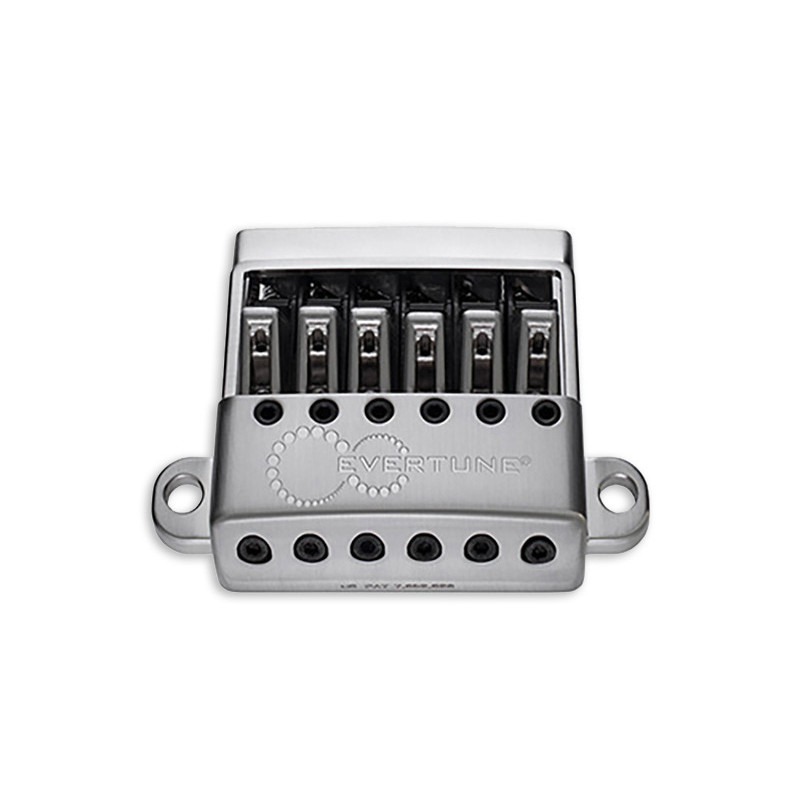

EVERTUNE BRIDGE G MODEL 6 STRINGS...
For Gibson-style guitars. Ambidextrous.
Every new EverTune bridge comes with a service pack.

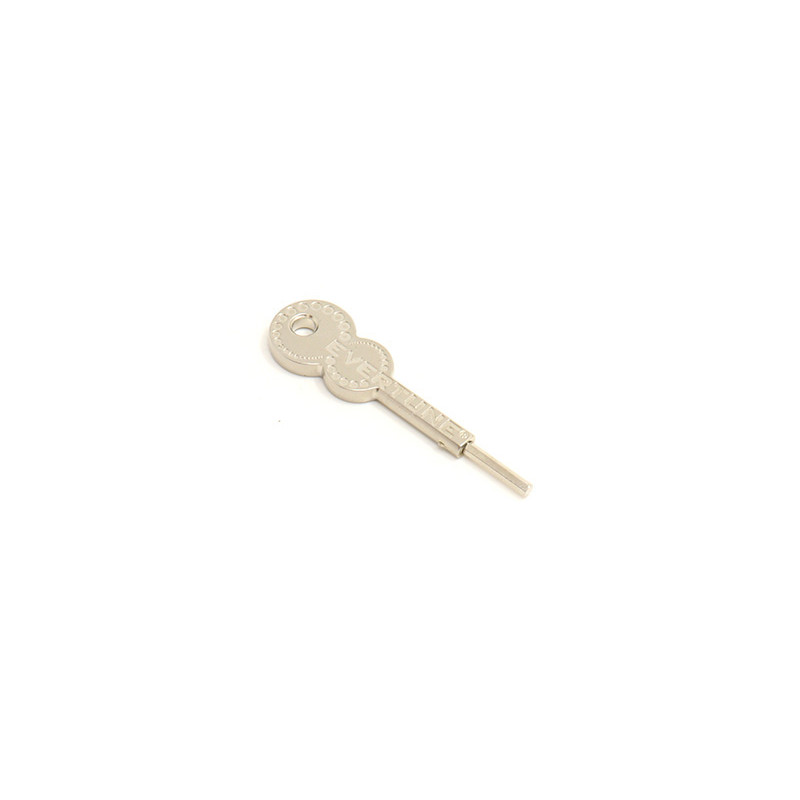

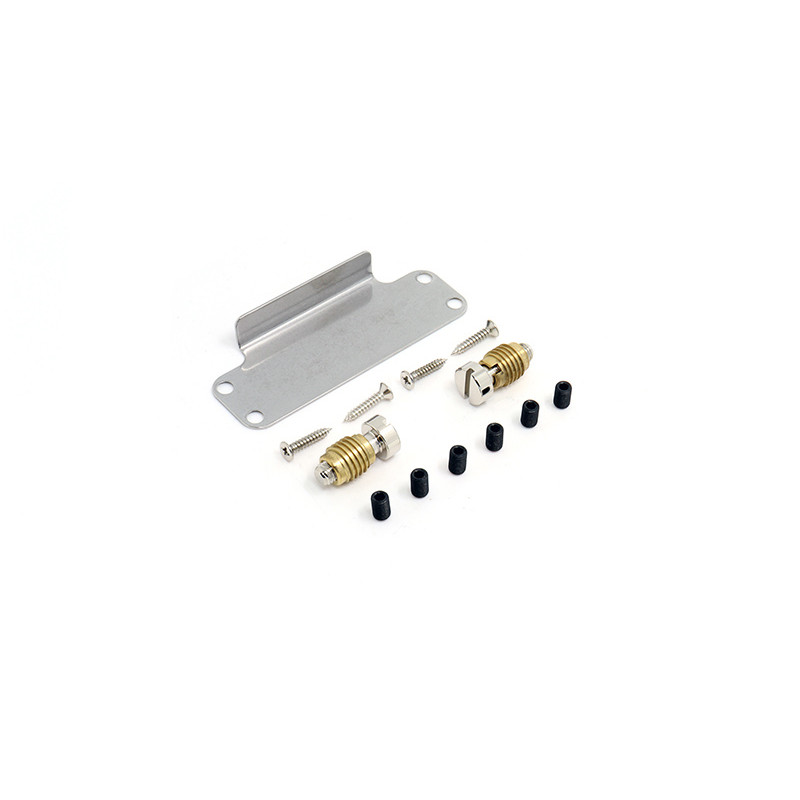

This includes an EverTune hex key (matched to the faceplate color), an extra set of action screws and a printed Owners Manual. If the installed set of action screws is 8mm then the service pack will have 10mm screws; if the installed set is 10mm then the service pack will have 8mm screws.

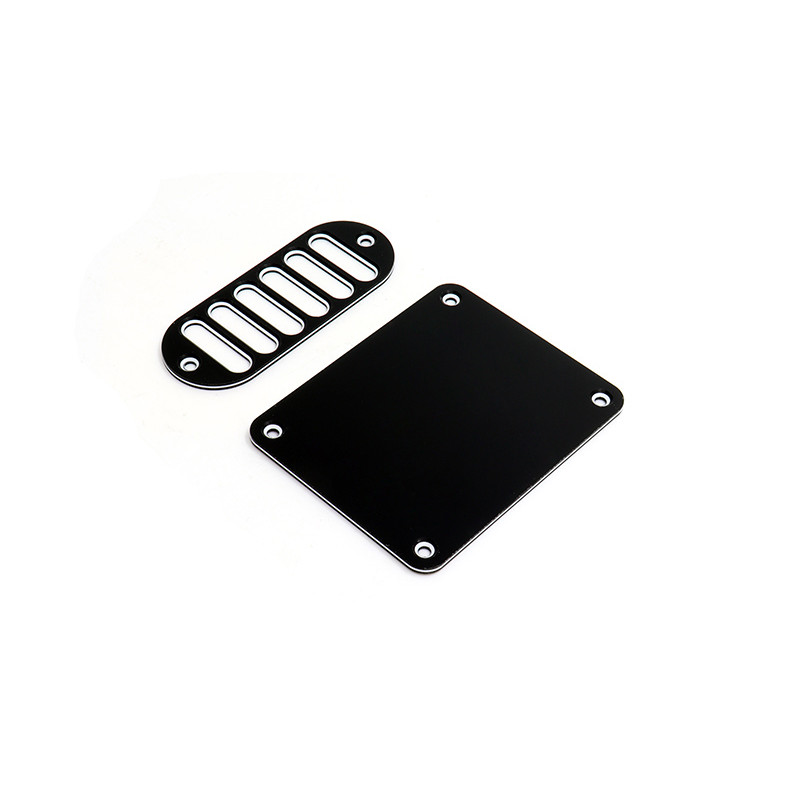

Every new bridge also comes with a comb and backplate.
Installation notes
The guitar body has to be 2.1” to do a standard G model installation where you recess the two back plate covers on the back of the guitar.
Any guitar that requires a G model bridge with a body thickness of less than 2.1” will be a route through body installation and will require a F or T model back plate to cover the route pocket on the back. We recommend the T back plate for route through body installations due to the smaller footprint.
To recess the footplate, the guitar body has to be at least 1 7/8” in order not to have to use a custom back plate riser.
Any guitar body thickness less than 1 3/4” will require the foot plate to be installed on top of a custom back plate riser to ensure proper positioning of the modules.
G model Standard or G model Long
If the bridge pickup is 5/8” or less from the scale length line, the G model Standard bridge is required.
If the bridge pickup is more than 5/8” from the scale length line, the G model Long bridge is required and these almost always need to be milled down for an exact fit.
Visit this section of our Bridge Buying Guide for photos and diagrams.
Zone 2 Variation Tolerance
Zone 2 can have some slight variation. If the pitch change is less than 7 cents from playing position to one half turn down into Zone 2 then the module's Zone 2 is within spec.
One half turn means loosening the tuning peg at the headstock by a turn of the wrist.
EVERTUNE® GABARITS MODÈLES G
EVERTUNE G TEMPLATE Includes plastic templates and all hardware. The guitar body has to be 2.1” to do a standard G model installation where you recess the two back plate covers on the back of the guitar. Any guitar that requires a G model bridge with a body thickness of less than 2.1” will be a route through body installation and will require a F or T...
Produits de substitution
17 autres produits dans la même catégorie
EVERTUNE® GABARITS MODÈLES F&T
ET-TEMPLATE
EVERTUNE F&T TEMPLATE Combo Pack. Includes plastic templates and all hardware. Minimum Body thickness for an F&T install is 1 3/4”. Any guitar body thickness less than 1 3/4” will require the foot plate to be installed on top of a custom back plate riser to ensure proper positioning of the modules.
EVERTUNE® MODULE TENSION FAIBLE CHROME
ET001MLC
EVERTUNE LOW TENSION MODULE CHROME
EVERTUNE® MODULE TENSION FAIBLE NOIR
ET001MLB
EVERTUNE LOW TENSION MODULE BLACK
EVERTUNE® MODULE TENSION FORTE CHROME
ET001MHC
EVERTUNE HIGH TENSION MODULE CHROME
EVERTUNE® MODULE TENSION FORTE NOIR
ET001MHB
EVERTUNE HIGH TENSION MODULE BLACK
EVERTUNE® MODULE DE TENSION STANDARD CHROME
ET001MC
EVERTUNE STANDARD TENSION MODULE CHROME
EVERTUNE® MODULE DE TENSION STANDARD NOIR
ET001MB
EVERTUNE STANDARD TENSION MODULE BLACK
EVERTUNE® CHEVALET MODÈLE F 6 CORDES DORÉ
ET001FG
EVERTUNE BRIDGE F MODEL 6 STRINGS GOLD For Strat-style guitars. Ambidextrous. Every new EverTune bridge comes with a service pack. This includes an EverTune hex key (matched to the faceplate color), an extra set of action screws and a printed Owners Manual. If the installed set of action screws is 8mm then the service pack will have 10mm screws; if the...
EVERTUNE® CHEVALET MODÈLE F 6 CORDES CHROME
ET001FC
EVERTUNE BRIDGE F MODEL 6 STRINGS CHROME For Strat-style guitars. Ambidextrous. Every new EverTune bridge comes with a service pack. This includes an EverTune hex key (matched to the faceplate color), an extra set of action screws and a printed Owners Manual. If the installed set of action screws is 8mm then the service pack will have 10mm screws; if the...
EVERTUNE® CHEVALET MODÈLE F 6 CORDES NOIR
ET001FB
EVERTUNE BRIDGE F MODEL 6 STRINGS BLACK For Strat-style guitars. Ambidextrous. Every new EverTune bridge comes with a service pack. This includes an EverTune hex key (matched to the faceplate color), an extra set of action screws and a printed Owners Manual. If the installed set of action screws is 8mm then the service pack will have 10mm screws; if the...
EVERTUNE® CHEVALET MODÈLE F 6 CORDES...
ET001FAN
EVERTUNE BRIDGE F MODEL 6 STRINGS BRUSHED NICKEL For Strat-style guitars. Ambidextrous. Every new EverTune bridge comes with a service pack. This includes an EverTune hex key (matched to the faceplate color), an extra set of action screws and a printed Owners Manual. If the installed set of action screws is 8mm then the service pack will have 10mm screws;...
EVERTUNE® CHEVALET MODÈLE G 6 CORDES CHROME
ET001GC
EVERTUNE BRIDGE G MODEL 6 STRINGS CHROME For Gibson-style guitars. Ambidextrous. Every new EverTune bridge comes with a service pack. This includes an EverTune hex key (matched to the faceplate color), an extra set of action screws and a printed Owners Manual. If the installed set of action screws is 8mm then the service pack will have 10mm screws; if the...
EVERTUNE® GABARITS MODÈLES G
ET-TEMPLATE-G
EVERTUNE G TEMPLATE Includes plastic templates and all hardware. The guitar body has to be 2.1” to do a standard G model installation where you recess the two back plate covers on the back of the guitar. Any guitar that requires a G model bridge with a body thickness of less than 2.1” will be a route through body installation and will require a F or T...
EVERTUNE® VIS DE RÉGLAGE DE HAUTEUR 10mm
ET001SAS10MM
EVERTUNE® VIS DE RÉGLAGE DE HAUTEUR 8mm
ET001SAS8MM
EVERTUNE® VIS DE FIXATION DE PLAQUE DE...
ET001MPS
