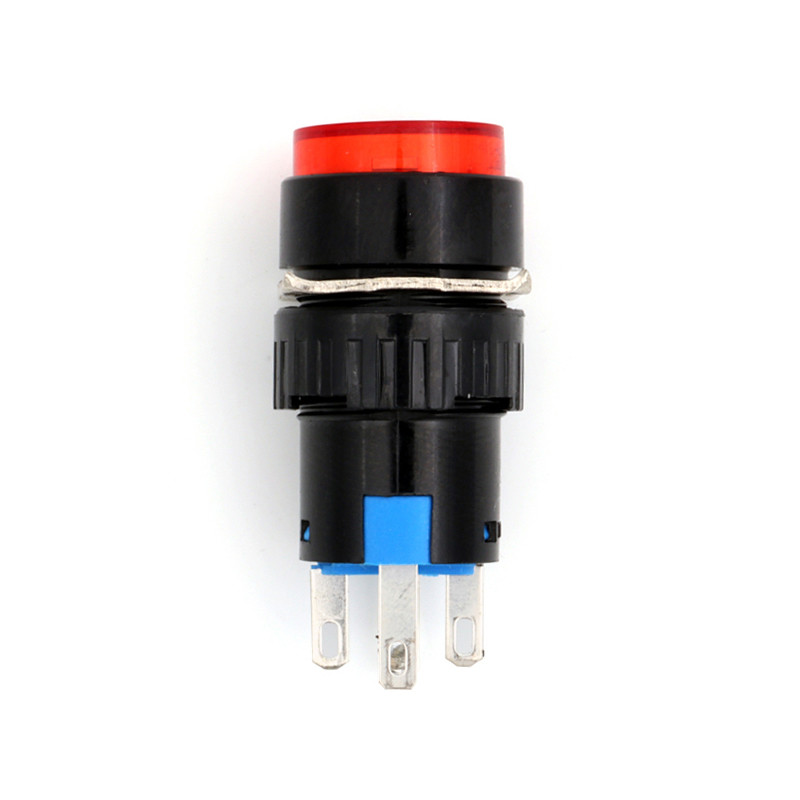

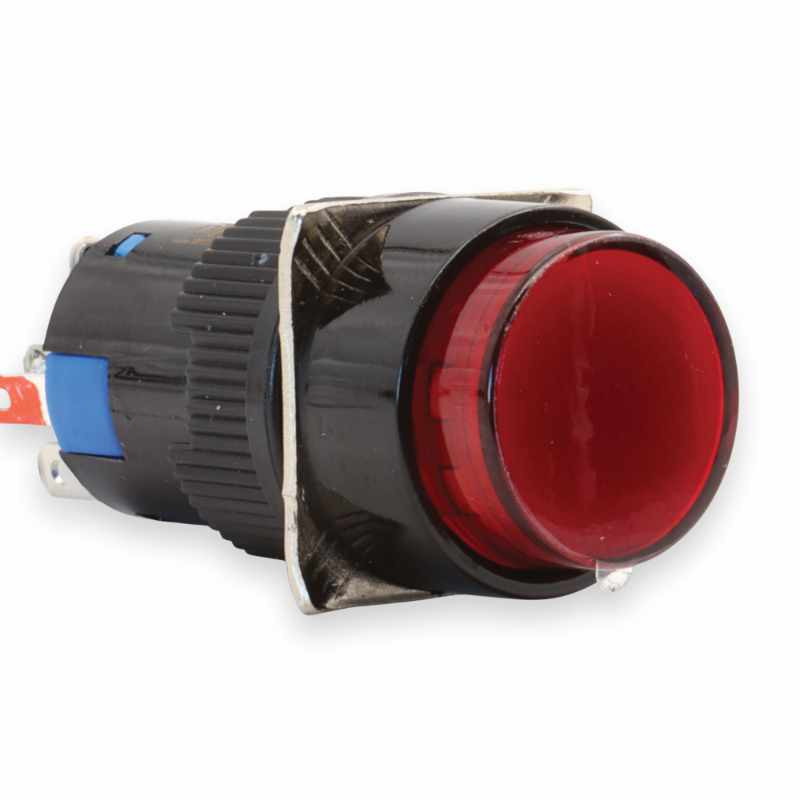

ALL PARTS® TESI® KILL SWITCH STYLE EVH® AVEC LED ROUGE
25,50 €TTC
(prix public conseillé)
EP-4927-026
·Type: Momentary Push Button Switch
·Operation Type: Normally Open
·Housing Material: Plastic
·Mounting hole Size: 16mm
·Mounting Panel Thickness: 1mm-6mm
·Operation Pressure: about 5n
·Operation Stroke: about 3mm
·LED Rated Voltage: 6V (includes wires to use with 9V battery and additional resistors in case you want to get creative with the wiring)
·LED Life: About 40,000 hours
·LED Power Draw: 15mA
·Contact Resistance: <50 mOhm
·Mechanical Life: 1,000,000 cycles
·Switch Rating: 3A/36VDC
What does all this mean? You're getting a tough switch that will last a long time in your instrument and will look good doing it!
The switch is easy to install. If you have the slightest bit of skill with a soldering iron you can do it yourself.
If you do not have that skill, you should have a guitar repair person do it.
If you need assistance with installation check out one of our Allparts Premium Installation Partners.
This package comes with everything:
Tesi NELLI 16mm Momentary Guitar Kill Switch - This is the size used on the Wolfgang Tour Guitar.
Tesi Quick-Connect wiring Bundle that includes:
·1 Black/Black ground wire
·1 Black/White hot wire
·1 9V Battery Harness with 330 Ohm resistor
·1 On/Off Rocker Switch
When used with active pickups and/or a stereo output jack (not included) the Tesi NELLI does not require the included on/off rocker switch.
10 autres produits dans la même catégorie
APEM MOMENTARY KILL SWITCH (UP: OFF)
1213C
·Product type: Pushbutton ·Casing/button colour: Black ·Functions: Momentary ·Lighting type: None ·Switch position: 1 x Off/(On) ·Contact type: 1 breaker ·Contact material: Silver (Ag) ·Recess diameter: 12.2 mm ·Electrical lifespan: 10000 cycles ·Type: 1213A2 ·Board thickness (max.): 5 mm ·Number of pins: 1
APEM MOMENTARY KILL SWITCH (UP: ON)
1212C
·Product type: Pushbutton ·Casing/button colour: Black ·Functions: Momentary ·Lighting type: None ·Switch position: 1 x On/(Off) ·Contact type: 1 breaker ·Contact material: Silver (Ag) ·Recess diameter: 12.2 mm ·Electrical lifespan: 10000 cycles ·Type: 1212A2 ·Board thickness (max.): 5 mm ·Number of pins: 1
MOMENTARY KILL SWITCH RED (UP: ON) Ø 12mm
KILL-RED
Spécificités : actionneur surélevé Couleur boîtier/bouton : rouge Position de commutation : 1 x On/(Off) Connexion : pin à souder Ø de montage : 12.7mm Type de produit : Bouton poussoir à pression
MOMENTARY KILL SWITCH BLACK (UP: ON) Ø 12mm
KILL-BK
Spécificités : actionneur surélevé Couleur boîtier/bouton : noir Position de commutation : 1 x On/(Off) Connexion : pin à souder Ø de montage : 12.7mm Type de produit : Bouton poussoir à pression
GOLDO® CHOPPERPOT POTENTIOMÈTRE KILL SWITCH 500K AUDIO
EL500KP
The common kill switches have one thing in common: As the name suggests, the signal is "killed" when the switch is pressed. Some people would much rather have it the other way around, a "reverse kill switch", so to speak! No matter, the göldo CHOPPERPOT can do it both ways - and much more! Versions and operation The CHOPPERPOT potentiometer is available...
GOLDO® CHOPPERPOT KILL SWITCH POTENTIOMETER 250K AUDIO
EL250KP
The common kill switches have one thing in common: As the name suggests, the signal is "killed" when the switch is pressed. Some people would much rather have it the other way around, a "reverse kill switch", so to speak! No matter, the göldo CHOPPERPOT can do it both ways - and much more! Versions and operation The CHOPPERPOT potentiometer is available...
GOLDO® CHOPPERPOT POTENTIOMÈTRE KILL SWITCH 500K LINÉAIRE
E500KP
The common kill switches have one thing in common: As the name suggests, the signal is "killed" when the switch is pressed. Some people would much rather have it the other way around, a "reverse kill switch", so to speak! No matter, the göldo CHOPPERPOT can do it both ways - and much more! Versions and operation The CHOPPERPOT potentiometer is available...
ALL PARTS® TESI® KILL SWITCH STYLE EVH® AVEC LED NOIR
EP-4927-023
ALL PARTS® TESI® KILL SWITCH IDO SUPER M 10mm NOIR
EP-4928-023
